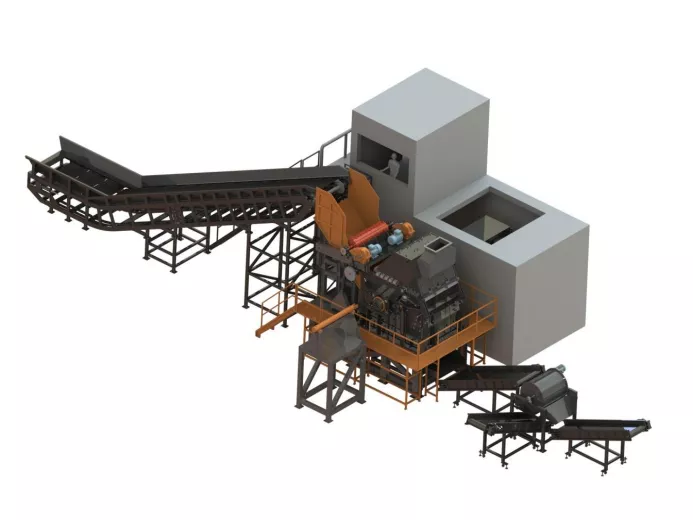

Hammer Mill

Introduction

Jiewei PSJ series hammer mill is mainly designed for processing the scrap metals like : steel scraps, car body shells, radiators,aluminium profiles,aluminium casting scraps etc.

It works on the principle of impact between rapidly moving hammers mounted to a rotor shaft . The hammers swing freely around the rotor shaft to crush material fed into the cutting chamber and effectively crushes the material into small uniform size fragments,while liberate different materials and prepare for sorting.

PSJ series hammer mill is often placed after the shredder in various production lines as a secondary crusher and can be integrated with conveyor and sorting equipment to efficiently separate iron,steel,aluminium and other non-metallic fractions.

100% high quality with CE certificate and ISO standard.

Typical Application Range

Steel scraps, motors, car body shells, radiators,aluminium scraps, aluminium windows and doors,Aluminum Profiles, industry wastes, circuit boards,etc.

Steel Scraps

Radiators

Small Home Appliances

Aluminium Castings

Circuit Boards

Aluminum Profiles

Aluminum cans

Bicycle

Key Features

Machine body: welded with high-strength steel structure, and wear-resistant thickened steel plates are used in wear areas , compact structure and easy to maintai

Cutter shaft structure : The whole forging alloy, the turntable edge is surfacing with wear-resistant alloy; the hammer is made of cast high manganese alloy steel, and the striking hammer and extrusion hammer are used interchangeabl

Screen structure : the appropriate mesh aperture can be adjusted according to the requirements of different materials for fine crushing,

Shock absorber: Absorb energy to reduce vibration, reduce the wear of parts, optimize the stability of the overall equipment

PLC control system : Automatic control system with touch screen operation, easy operation

Material Handling Comparison

│ Steel Scraps

│ Waste PCB

│ Aluminium Castings

The Different Output Models You Can Choose

PSJ-900

PSJ-1200

PSJ-1600

PSJ-1800

Technical Specification

Model	PSJ900	PSJ1200	PSJ1600	PSJ1800
Main power	90KW	160KW	315KW	450KW
Feeding Hopper Size	900*340	1200*340	1580*450	1750*520
Machine size	6000x3200x4500	5500x4800x4500	5300X6300X4800	10600X7500X6000
Machine Weight	13T	18T	27T	70T
Capacity	4-7t/h	5-8t/h	6-12t/h	8-14t/h
